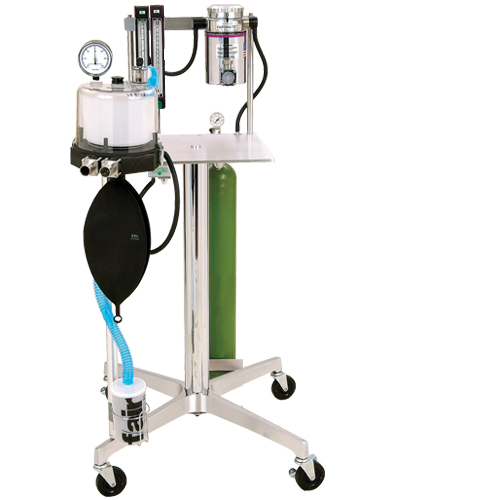

52111 Veterinary Anesthesia Machine w/o Vaporizer

Posted by & filed under .

52111 Anesthesia Machine

SKU: 52111 Categories: , ,

Description

The Model 52111 is equipped with two O2 flowmeters one high 0-5 LPM and one low 0-1 LPM.  This superb design, includes one “E” cylinder yoke that  allows the veterinarian to deliver anesthesia where a connection to a main O2 system is not accessible or provides a backup source of O2 when connected to a main O2 system. 5 Year Warranty.  Vapomatic Vaporizer sold separately.

DESIGN FEATURES:

  • Quick release toggle latches for easy to change absorbent (prepack or loose granules).
  • Pressure manometer
  • Air intake valve
  • Pop off valve (see through, easy to clean).
  • Horizontal inhalation and exhalation valves to prevent valves from sticking in the open position.
  • Two O2 Flowmeter (one high 0-5 LPM, one low 0-1 LPM).
  • O2 flush
  • Compact, very mobile
  • Absorber pole allows absorber to adjust up or down and also swings out of the way when not in use.
  • Stand provides excellent stability
  • Quick & easy switch over from rebreathing to non rebreathing system.
  • Accessories included with purchase:  Adult & Pediatric Circuit, F/AIR Kit, 2 & 3 Liter Breathing Bag

Call to Order 1-800-795-3062

BICKFORD Supersorber™

PRODUCT CODE:

60000
BICKFORD ANESTHESIA MACHINES are provided with the new SUPERSORBER™. This is a patented veterinary absorber design which discards the traditional “hospital type” absorber construction in favor of advanced engineering features that guarantees the highest degree of quality and performance for the veterinary practitioner. FEATURES AND DESCRIPTION
  • BASE – A single base casting mounts all parts and makes all circuit connections.
  • CANISTER – A full size refillable canister is supplied. Also, any of the available pre-packs can be used. The canister or pre-pack is simply placed on the base gasket.
  • DOME – A transparent dome, similar to a bell jar, is placed over the canister and fastened with two easy-to-operate toggle latches, sealing it to the base gasket.
  • DIRECTIONAL VALVES – In the circle breathing system, are mounted side by side on the base casting and are axial flow, low resistance, flapper valve type having transparent housings for observing breathing activity and valve action.
  • PRESSURE RELIEF VALVE – or pop-off valve, is the Bickford PC-1 with swiveling scavenging outlet, and transparent housing.
  • PRESSURE MANOMETER GAUGE AND NEGATIVE PRESSURE RELIEF VALVE – Are mounted on the top of the transparent dome as is the pop-off valve.
  • BAG HOLDER – Is directly attached to the underside of the base casting so that the breathing bag is visible and easy to reach.

Anesthesia Machine and SuperSorber Parts Diagram

Anesthesia Machine

1. 60039 Base 2. 60040 Caster with brake (2) 3. 60041 Caster (2) 4. 60042 Nut and washer 5. 60043 Center column 6. 60044 Table plate 7. 60045 Center bolt 8. 60046 Support post (2) 9. 60047 Back bar 10. 60048 Absorber mounting post 11. 60000 CO2 absorber 12. 20010 ISO, 20020 Sevo, Vaporizer 13. 05502A Inlet connection 14. 05502 Outlet connection 15. 60035, 60036 or 5110F Flowmeter 16. 52019, 18001, 18003­ Patient breathing circuit 17. 06111 or 06112 Patient “Y” connector 18. Breathing bag 19. 18053 Fresh gas supply tube (cut to size) 20. 80120 F/Air waste gas canister 21. 60034 O2 flush button 22. 60049 Mounting stud for ventilator (optional) 23. 51110V Needle Valve

Supersorber™

Supersorber CO2 Absorber Nomenclature 1. 60015 Base 2. 60004 Inhalation valve 3. 60004B Exhalation valve 4. 60007 Gasket assy. 5. 60008 Toggle clamp 6. 60031 Bag adapter 7. 60053 Fresh gas supply connection 8. 60051 Mounting clamp 9. Breathing bag 10. 60002 Soda lime canister (refillable) 11. 60001 Dome housing 12. 60010 Pressure gauge Pos./Neg. 13. 60011 Air inlet/Negative pressure relief valve 14. 80005 Pop-off valve/Positive pressure relief valve 15. 60008B Hook-toggle clamp (2) 16. 60009 Glass Sleeve 17. 60017 Basket Gasket 18. 80005H Pop off valve housing

Vapomatic™ Vaporizer

  • Temperature compensated.
  • Output concentration stable during assisted respiration pressure pulses.
  • Filler-drain-contents window combined in easy access single unit.
  • Large dial with easy to see numbers has “off” lock and calibration indents.
  • Dial Rotation: CW to decrease and “off” CCaW for “on” and increase.
  • “Off” Position locks to prevent accidental actuation of vaporizer.
  • When “Off”, vaporizing chamber is isolated and gas is bypassed to outlet.
  • Tamperproof adjustments – dial seal must be broken for access.
  • Sump may be removed for cleaning or wick replacement without disturbing calibration by removing one screw.
  • Inlet and Outlet fittings are standard 23mm male & female tapers and are individually replaceable. Other connector options are available upon request.
  • Mounting holes in rear are interchangeable with other vaporizers.
